MOHW-MD-(I)-No. 006204
During the teeth cleaning or other treatments, water mist, saliva, blood, and dental calculus may be generated in the oral cavity, which may affect the dentist's visual field and the patient's comfort. The function of a suction systems is to immediately suck the liquid, including saliva and blood in the oral cavity, thus ensuring the smoothness and clarity of the treatment process.

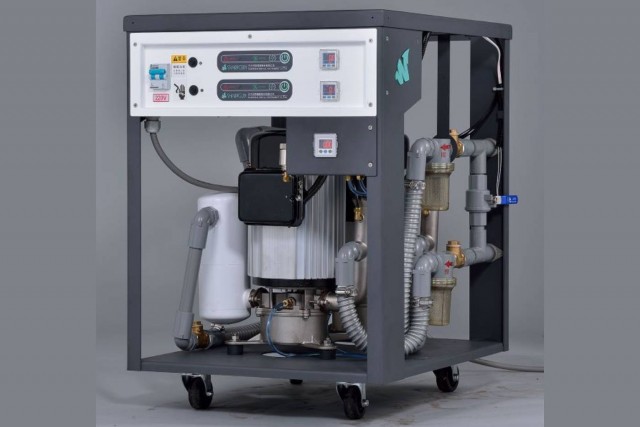

During the oral treatment, continuous and strong negative pressure suction is indispensable. The water-cooled suction system can immediately suck saliva, blood, and aerosols from the patient's mouth, reducing the risk of cross-infection, protecting the health of medical staff and patients, reducing discomfort, avoiding swallowing reflex and cough, improving the smoothness of the treatment process, and avoiding treatment interruption.
The water-cooled suction System can automatically cut off power in case of water shortage, avoiding damage to the motor coil, and ensuring the safety of the operation process. Through delayed shutdown, it effectively reduces the contact loss of the motor start-up switch caused by the frequent start-up of the host machine and prevents possible faults from occurring. In addition, the water-cooled suction System uses stainless steel pumps to reduce problems caused by rust and wear, thus improving the product's service life.
Model | SS-1A10 | SS-1B10 | SS-1A20 | SS-1B20 | NDV-22 | NDV-33 | |
---|---|---|---|---|---|---|---|
VoltageV/Hz | 220 / 60 | ||||||
Power kW | 1.19 | 1.89 | 1.19~2.38 | 1.89~3.78 | |||
Suction flow rateL/min | 180 | 340 | 180~360 | 340~680 | |||
Maximum vacuumcm-Hg | 55 | ||||||
Motor speedrpm | 3600 | ||||||
Water consumptionL/min | 0.8 | 1.2 | 0.8 ~ 1.6 | 1.2 ~ 2.4 | |||
Noise leveldB(A) | 56 | 52 | 58 | 55 | 56 | 58 | |
Weight kg | 23 | 35 | 34 | 45 | |||
Dimensions Length x width x height mm |
45x33x58 | 45x33x58 |
