Dental Lab Workstation

Model :

Original typeMM-05A Practical typeMM-05P

MOHW-MD-(I)-No. 006204

The Dental Lab Workstations MM-05A and MM-05P allow you to accurately repair dentures while avoiding dust problems for patients. Provisional denture modification beside the patient can not only increase patient confidence but also reduce their sense of alienation.

Inquire

The Dental Lab Workstations are equipped with NSK UTLIMATE XL, and their 180° vector control systems operate smoothly. The lightweight and delicate body reduces hand fatigue and enhances overall balance. In addition, the special dust prevention mechanism effectively prevents pollution and provides high durability. The CHUCK strength is increased by 30% to enable them to cut more materials.

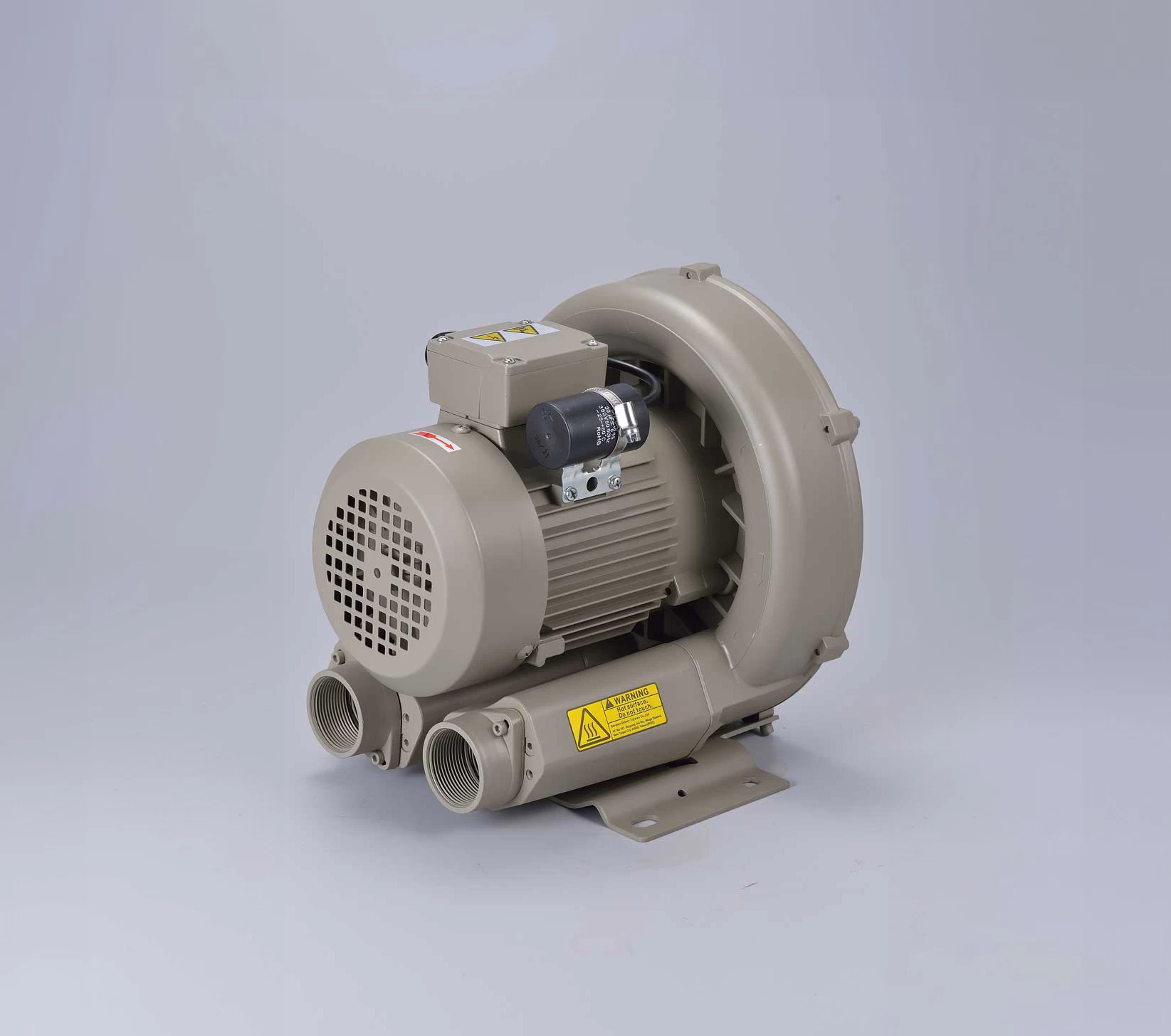

Reliable and maintenance-free blower motor

Except for the fan blades, there are no other moving parts. The impeller is directly connected to the motor without gears or drive belts, and the brushless motor which features no wearing parts makes it even more durable.

Clear operational perspective

LED-illuminated, full-size, transparent acrylic dust cover provides the best viewing angle for grinding and refurbishing dentures.

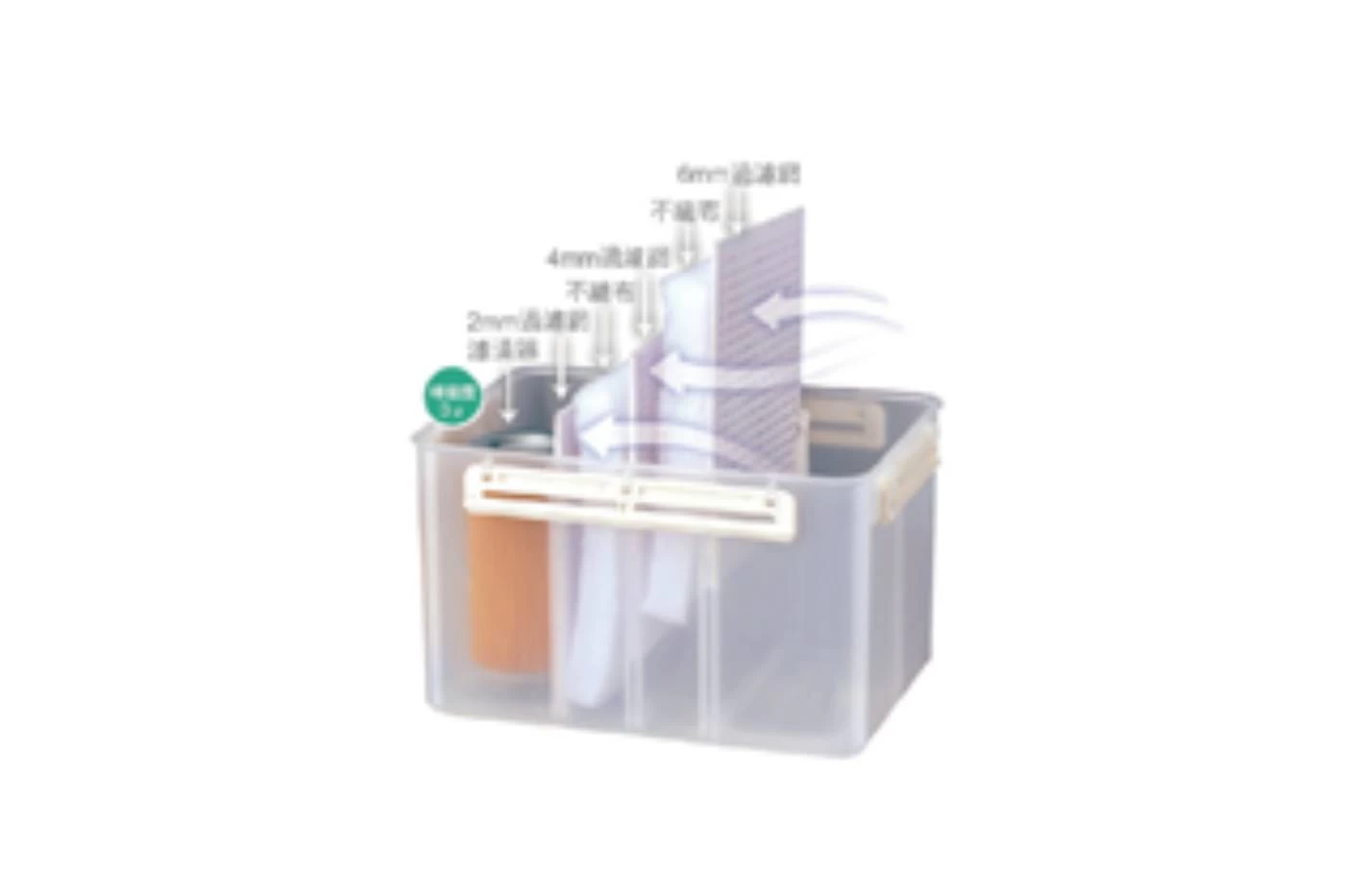

Six-layer dust filter box

It can prevent foreign objects from entering the motor, largely improving its durability.

Specification

Model	MM-05A	MM-05P
Voltage (V/Hz)	110 / 60	110 / 60
Power (kW)	0.5	0.5
Maximum air volume (ft³/min)	45.9	45.9
Maximum negative pressure (mbar)	130	130
Noise leveldB(A)	56	56
Weight (kg)	45.3	45.3
Dimensions of the host machine (Length x width x heightmm)	390x720x1000	430x460x1000
